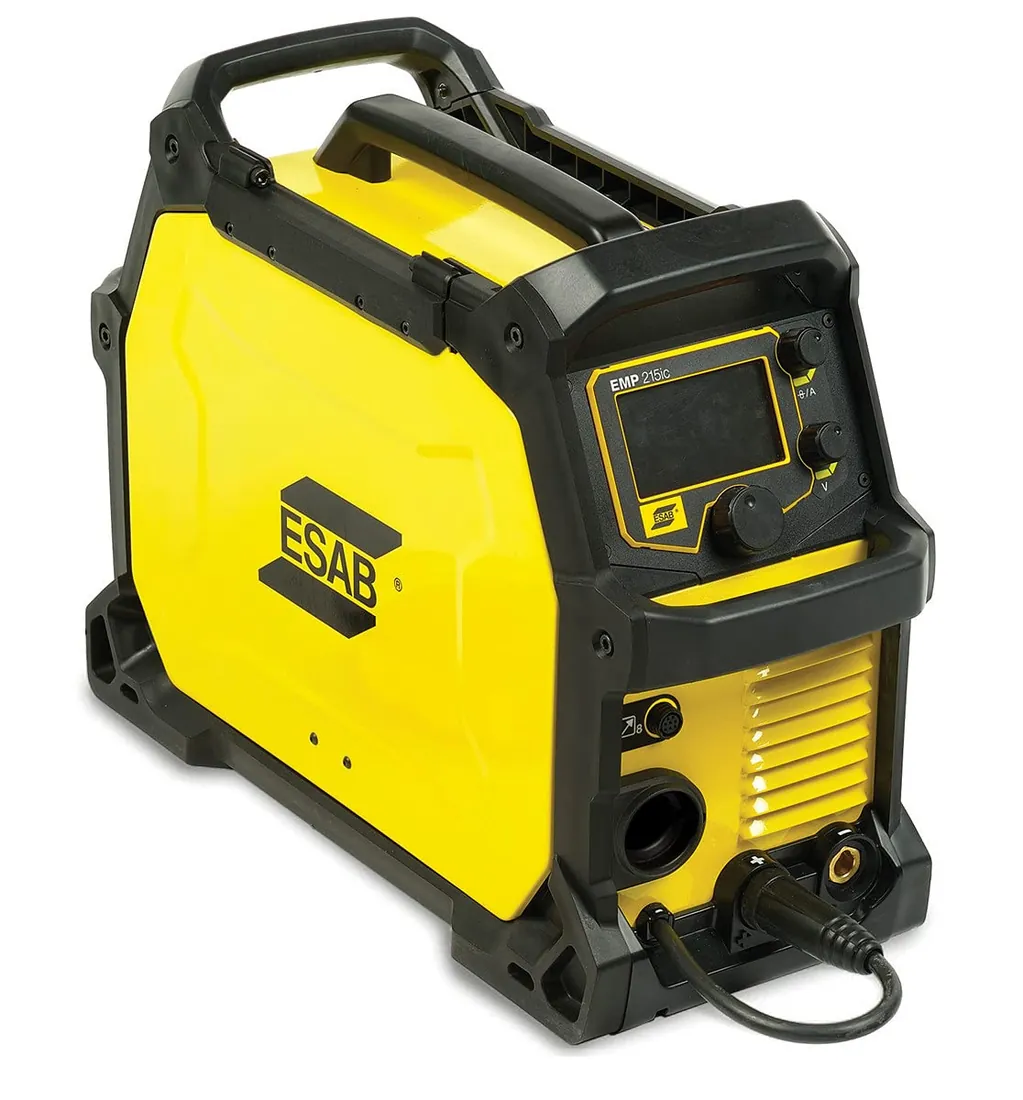

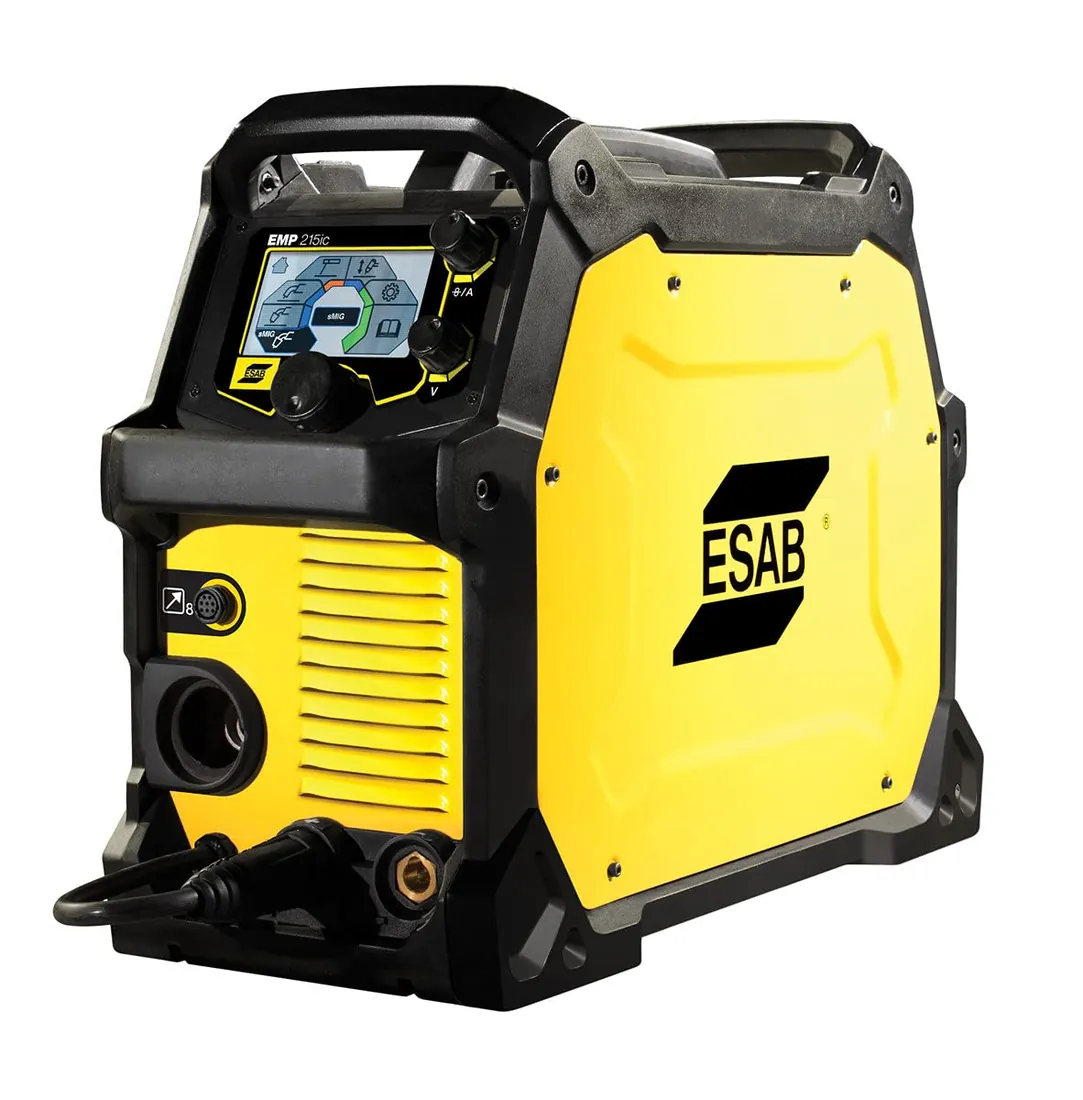

ESAB Rebel EMP 215ic Multi-Process Welder: up to 240 A

What it welds

The ESAB Rebel EMP 215ic Multi-Process Welder is a multi-process with a maker-stated output of 5 to 240 amps.

At its top output of 240 amps, Miller's 1-amp-per-thousandth rule points to about 0.240 in of steel per pass. Where the rule comes from.

The listing doesn't give a duty cycle with its amperage, which makes long beads hard to plan; the rating plate or manual should state it. Why it matters.

Processes, per the maker: MIG/Stick/Tig. Check which torches and guns come in the box; a TIG torch or spool gun is often extra. Process guide.

Eye protection: OSHA's minimum is shade 10 for most of this machine's range (shade 10 for stick above 160 A). Full table.

Also on the listing: dimensions of 17.68 x 7.8 x 13.66 inches and a weight of 79.2 lb.

Is it the right machine for the job?

Buy it for

A shop that does a bit of everything
Steel to about 0.240 in per pass

Skip it for

Steel much past 0.240 in in one pass

What it does well, where it falls short

Does well

Up to 240 A output
Multi-process

Falls short

Duty cycle not stated with amps
Torches may be extra

Power and setup notes

Ratings are the maker's own, stated under the maker's conditions. Follow the manual, wear eye protection of at least OSHA's minimum shade, keep combustibles away, ventilate, and have a licensed electrician install new circuits.

Rated output and specs

Every figure below comes from the source shown in brackets. Where the maker doesn't state something, we say so instead of estimating.

Model number	Rebel EMP 215ic	Retailer
Dimensions (seller)	17.68 x 7.8 x 13.66 inches	Retailer
Product weight	79.2 lb	Retailer
Output range	5-240a	Retailer
Input power	Dual Voltage	Retailer
Processes	MIG/Stick/Tig	Retailer
