What it welds
The YESWELDER LYG-M800H Auto-Darkening Welding Helmet is an auto-darkening with a maker-stated shade range of 9-13 shade.
Check that range against OSHA's minimums for your work: shade 10 for MIG from 60 to 500 amps, shade 8 for stick from 60 to 160 amps, shade 8 for TIG up to 150 amps. Shade chart.

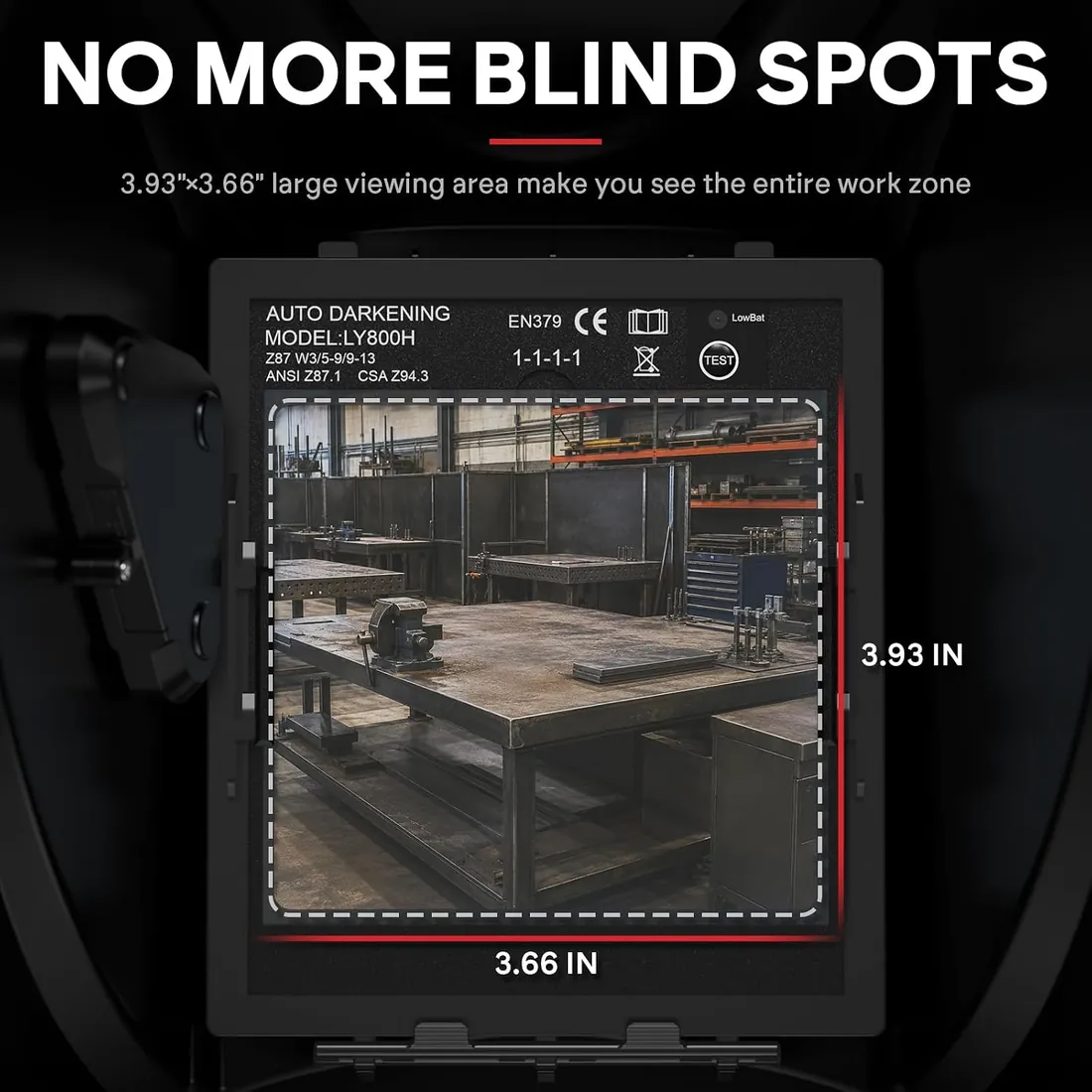

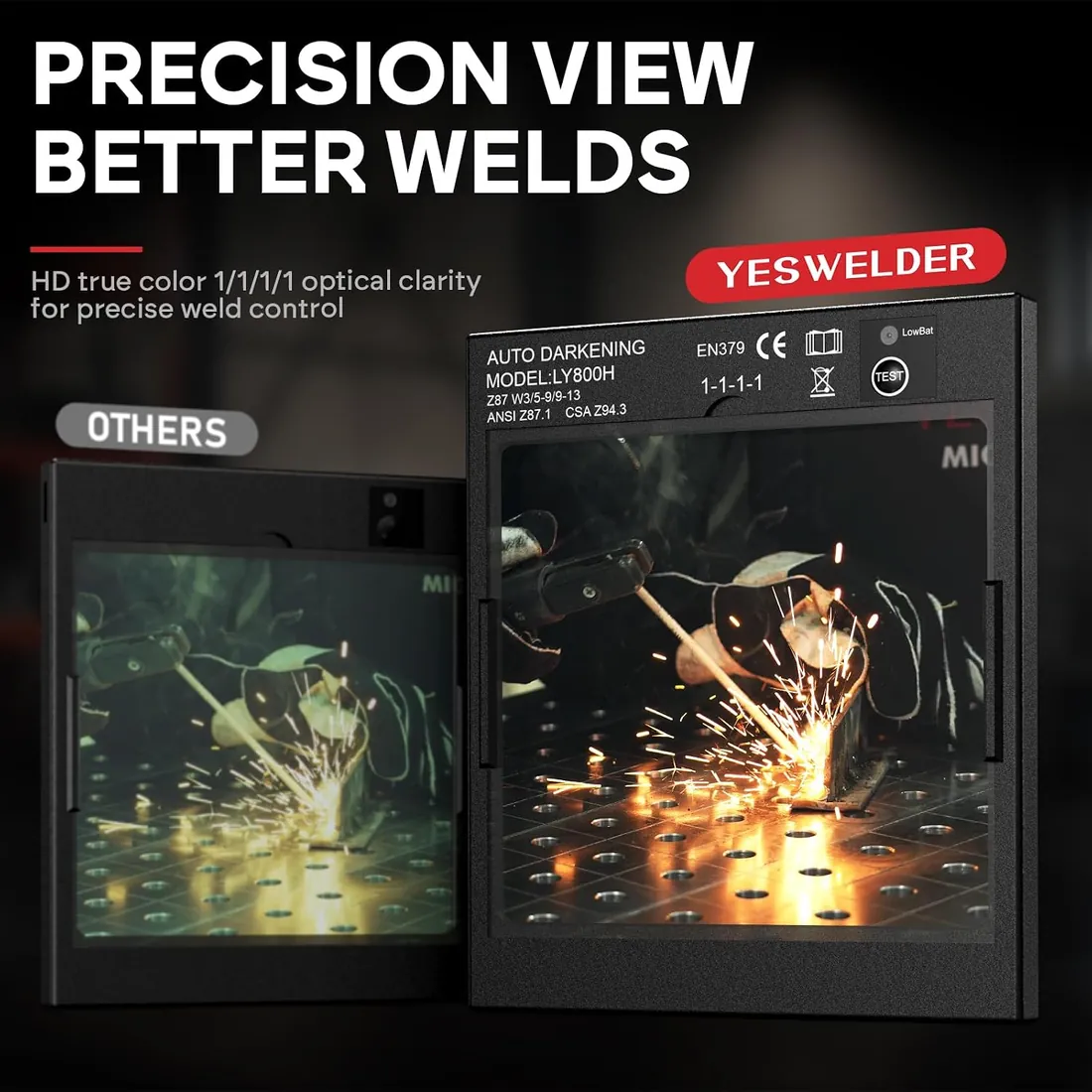

Per the maker: 4 arc sensors; viewing area 3.93" x 3.66"; optical class 1/1/1/1. What each spec means.
Test the lens before every use; a lens that fails to darken exposes your eyes to the arc. Wear safety glasses with side shields under the helmet where chips can fly, as OSHA's fact sheet advises.
Also on the listing: a weight of 2.2 lb.
Is it the right machine for the job?
Buy it for
- Everyday MIG and stick
- Out-of-position welding
Skip it for
- Work needing a shade outside its range
- Grinding without a grind mode
What it does well, where it falls short
Does well
- 9-13 shade
- 4 sensors
- View 3.93" x 3.66"
- Optical class 1/1/1/1
Falls short
- Check fit and weight
Power and setup notes
- Ratings are the maker's own, stated under the maker's conditions. Follow the manual, wear eye protection of at least OSHA's minimum shade, keep combustibles away, ventilate, and have a licensed electrician install new circuits.
Rated output and specs
Every figure below comes from the source shown in brackets. Where the maker doesn't state something, we say so instead of estimating.
| Model number | LYG-M800H | Retailer |
|---|---|---|
| Size | 3.93"X3.66" | Retailer |
| Product weight | 2.2 lb | Retailer |
| Model name | LYG-M800H | Retailer |
| Material | Metal | Retailer |
| Shade range | 9-13 shade | Retailer |
| Viewing area | 3.93" x 3.66" | Retailer |
| Arc sensors | 4 | Retailer |
| Optical class | 1/1/1/1 | Retailer |
Machines to put next to it
Other welding helmets in the same amp range
- YESWELDER LYG-M800H-A Auto-Darkening Welding Helmet
- MIGVAN H-21 Auto-Darkening Welding Helmet
- YESWELDER Q800D Auto-Darkening Welding Helmet
- YESWELDER LYG-Q800D Auto-Darkening Welding Helmet
Every welding helmets on one spec sheet · All YESWELDER machines listed
Final verdict
A match for everyday MIG and stick.
