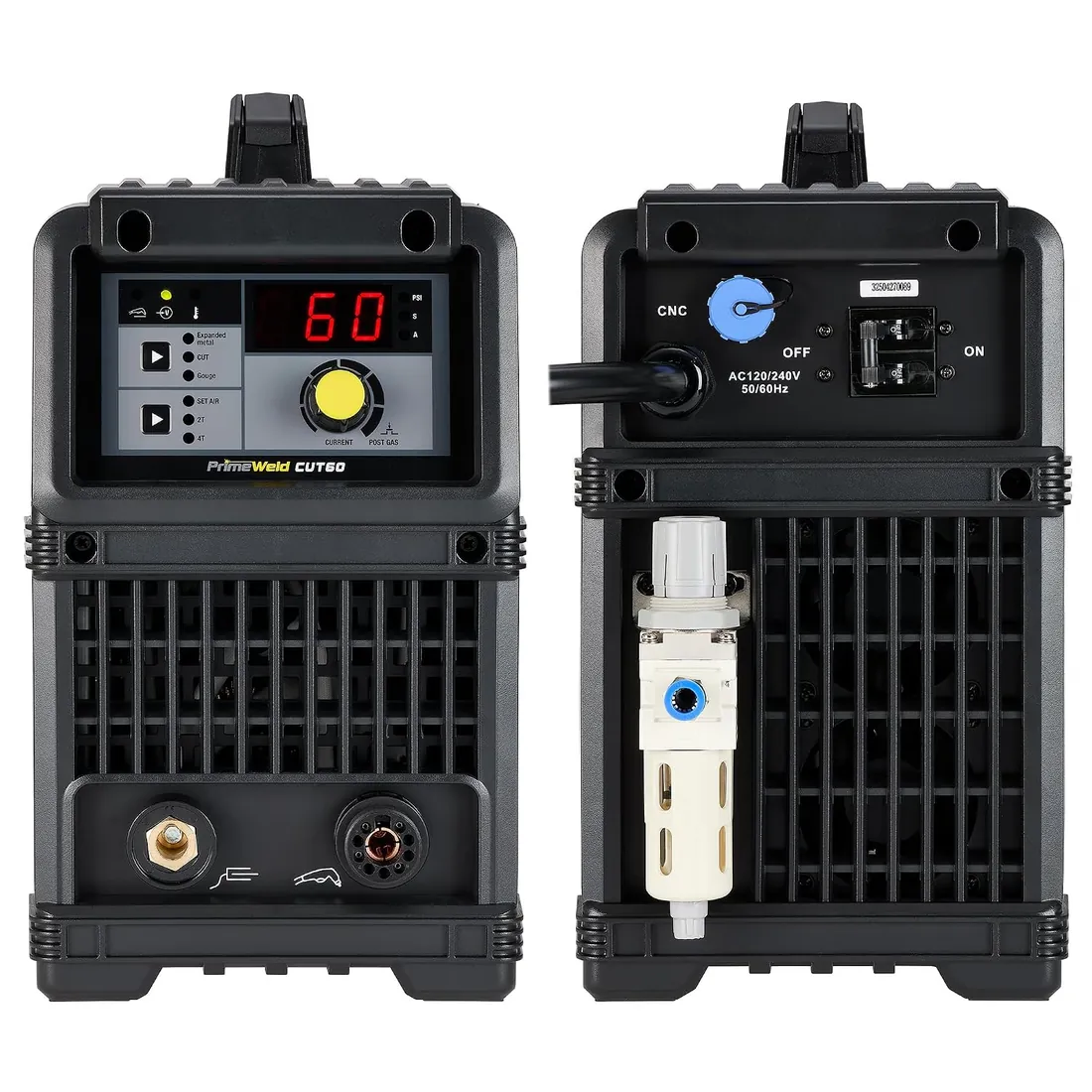

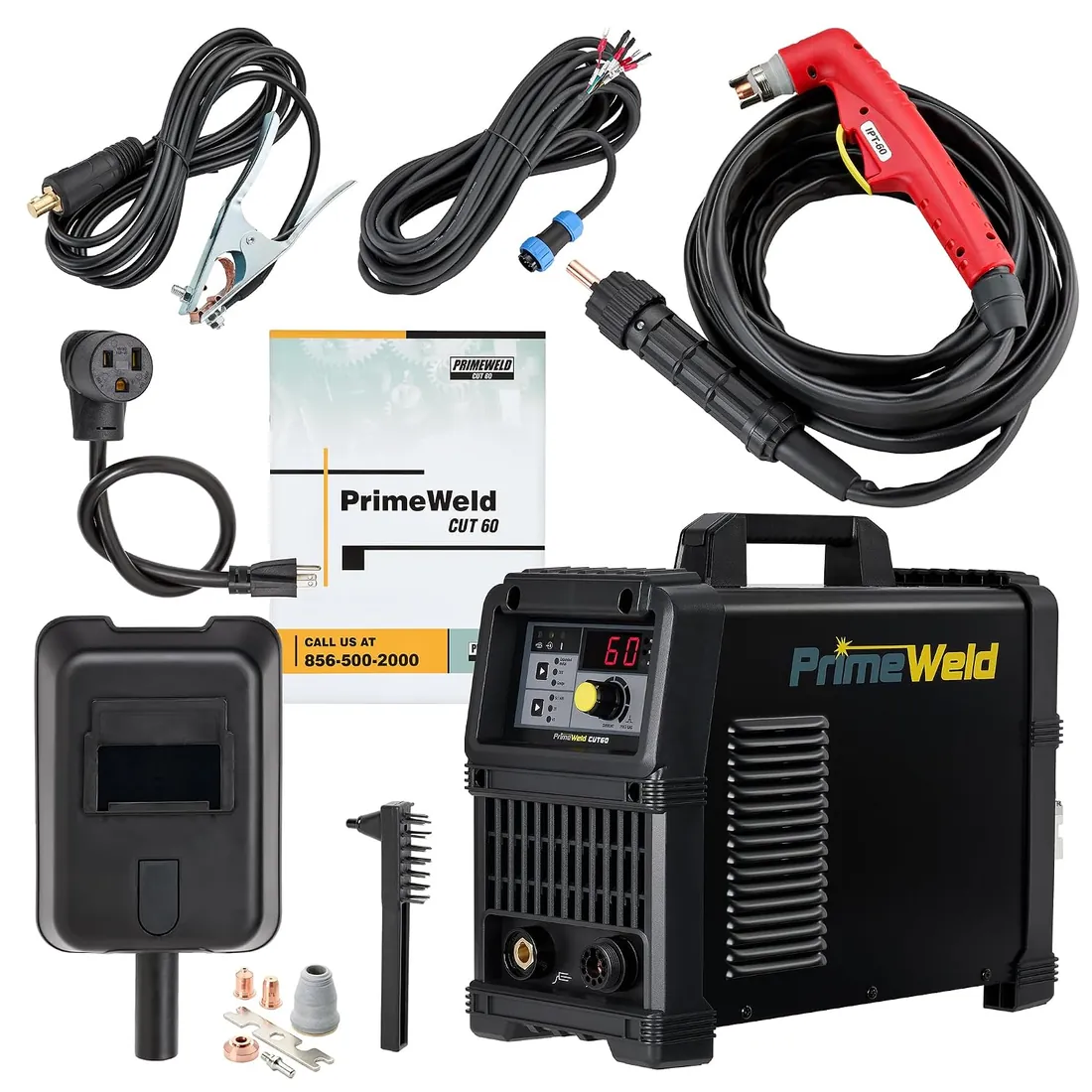

PRIMEWELD CUT60 Plasma Cutter: 60 A

What it welds

The PRIMEWELD CUT60 Plasma Cutter is a plasma cutter rated by its maker at up to 60 amps on 110 or 220-volt input.

The listing doesn't state a cut capacity, which is the main way to size a plasma cutter. Makers mix rated, clean and severance figures; compare like with like. Cut capacity explained.

Check the air requirement in the manual; your compressor has to deliver that flow continuously at that pressure.

Arc start: pilot arc. Pilot-arc and non-contact starts help on rusty or painted steel and expanded metal.

OSHA's minimum lens for light plasma cutting is shade 8, and its fire rule wants combustibles 35 feet away or shielded. Shade chart.

Also on the listing: dimensions of 20 x 11 x 19 inches.

Is it the right machine for the job?

Buy it for

Cutting sheet and plate steel
Cutting away from a compressor

Skip it for

Steel past its stated cut capacity
Heavy plate

What it does well, where it falls short

Does well

Pilot arc
Dual-voltage

Falls short

Cut capacity not stated
Consumables wear

Power and setup notes

Ratings are the maker's own, stated under the maker's conditions. Follow the manual, wear eye protection of at least OSHA's minimum shade, keep combustibles away, ventilate, and have a licensed electrician install new circuits.

Rated output and specs

Every figure below comes from the source shown in brackets. Where the maker doesn't state something, we say so instead of estimating.

Model number	CUT60	Retailer
Dimensions (seller)	20 x 11 x 19 inches	Retailer
Output range	60amps	Retailer
Duty cycle	60% duty cycle at 60amps	Retailer
Input power	110v/220v	Retailer
Pilot arc	pilot arc	Retailer
